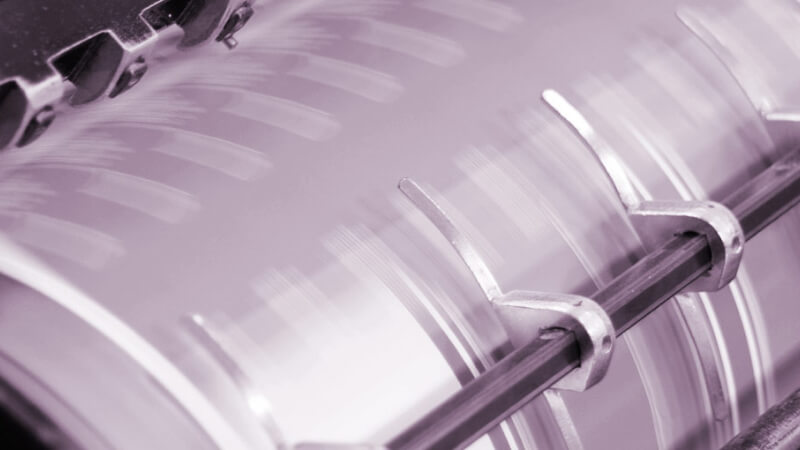

Films
SURFACE TREATMENT FOR PLASTIC FILM MANUFACTURERS & FILM EXTRACTION
SOFTAL
provides high-efficiency corona treatment systems engineered for ultra-wide BOPP and PET films (exceeding 10 meters), delivering continuous high power to ensure uniform discharge, stable performance, and optimal surface activation.

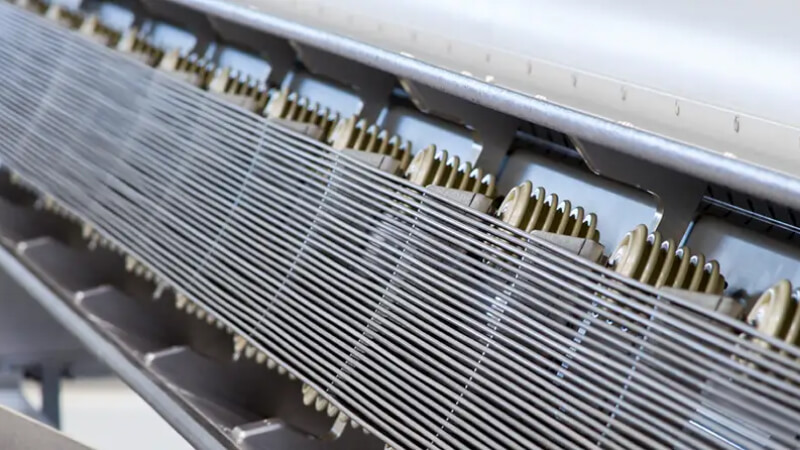

Intelliblade™ is SOFTAL’s patented electrode technology, designed to ensure exceptional discharge uniformity across the entire treatment width.
Its construction maintains a stable and consistent electrode gap even under high power and elevated temperatures, significantly enhancing reliability and treatment quality.
Key Features:
- Uniform discharge : Ensures consistent surface energy across the entire web
- Stable electrode gap : Prevents discharge fluctuations caused by thermal expansion
- High-power capability : Maintains precise control during high-speed, high-load production
- Durable, low-maintenance design : Extends uptime and reduces maintenance effort
Converting
Over time, surface treatment decays and the film’s surface energy drops. Refresher corona treatment restores surface energy, improves wettability, and enables converters to achieve optimal processing results.
Converting application :
In-line
- Blown film line
Off-line:
- Printing press
- Solventless Laminators
- Precise Coating line
Label printers
- Corona stations on film stretching lines can exceed 10 meters in width, while label applications require only a few centimeters.
- In label production, corona treatment enhances adhesion for inks, varnishes, adhesives, and other coatings.
- Market demand for smaller systems has led to the development of compact, easily integrated corona stations.
- The CLN series features removable electrode modules for simplified cleaning, maintenance, and process adjustments.
Corona Station
Surface Treatment with ALDYNE™ Technology
- Provides highly efficient, controlled, and uniform corona discharge
- Significantly increases surface energy on plastics, paper, metal foils, and more.
- Improves:
- Wettability
- Adhesion
- Printability
- Coating performance
- Laminating quality
- Ensures stable and consistent treatment even at high speeds or with demanding materials

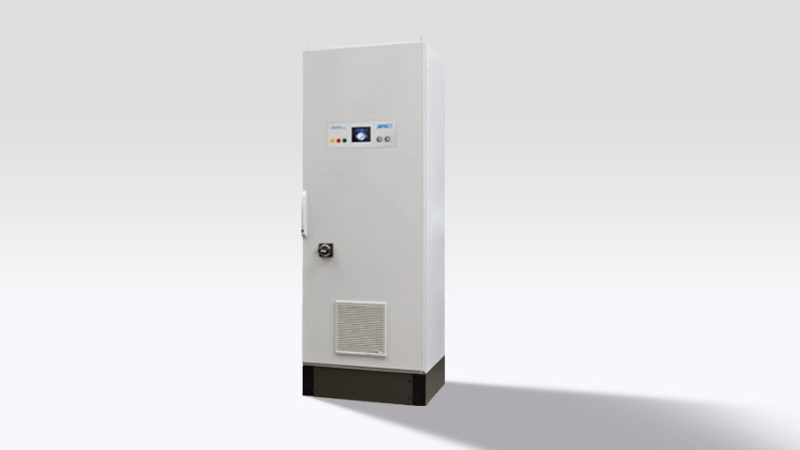

CORONA GENERATOR
In a corona system, the corona generator and the high-voltage transformer produce the high voltage that is applied to the corona electrodes. Additionally, the generator controls the overall corona system. With our 9000 series of corona generators, SOFTAL has set new standards in the corona generator market across all power segments.

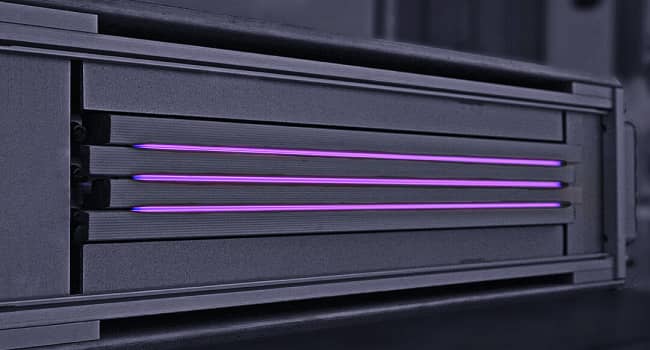

Linear Plasma
Linear Plasma technology generates a potential-free plasma discharge within the electrode housing. The plasma is then projected onto the material surface using compressed air or a specific process gas mixture.
As a result, this technology is not constrained by material thickness, enabling effective treatment of materials with virtually any thickness.
In conventional corona treatment of industrial foams and multi-wall sheets, undesired backside or internal cavity treatment can occur due to air inclusions or internal voids.
Linear Plasma technology completely eliminates this issue, providing a more precise and controllable surface treatment process.
OZONE CONVERTER SORBAL™
Corona plasma systems operating at atmospheric pressure generate ozone and therefore require forced exhaust
SOFTAL systems include exhaust monitoring; the system cannot be activated if exhaust fails
Exhaust air can be routed through an ozone converter to meet OHS regulations
SORBAL-K is a standalone ozone treatment unit, constructed with corrosion-resistant materials and stainless steel
